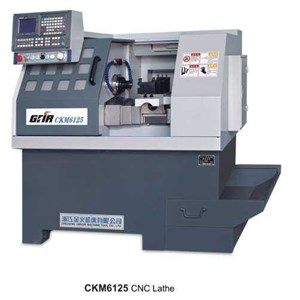

Detail CNC Lathe CKM6125
CNC Lathe CKM6125
1. Double high strength resin sand whole base and fully enclosed protection.
2. The bed is made of high strength cast iron, the guide rail is high precision and long service time through high-frequency quenching.
3. Adopting surface paste plastic process, the guide rail has the features of good processing dynamic performance and high accuracy after serious scrape and accurate lubrication.
4. Independent spindle box structure using high-precision bearings which are three in front and two in rear to ensure high-speed, high load and high precision cutting demand
5. Perfect knife structure for high speed of changing knife, high precision of re-fixing position, wide processing range, convenient maintenance.
6. Adopting full guide rail protection and the hydraulic station and cooling tank are separated from the main machine to ensure the machine tool precision won’ t be influenced by hot cutting.
7. The machine tools adopt modular design and we can provide products as per customers’ demand.
Technical Parameter>
Maximum swing diameter over bed ( mm) : 200
Maximum swing diameter over carriage ( mm) : 110
Diameter of spindle hole ( mm) : 40
Maximum diameter of chuck ( mm) : 130
Type of spindle end: A 2-5
Maximum movement along X axis: 250
Maximum movement along Z axis: 280
Type of tool post: Gang tool
Maximum dimensions of tool ( mm) : Shank size 16* 16 Inner boring tool: ¦ 20
Rotating speed of spindle ( step-less) ( r/ min) : 200~ 5, 000
Speed range of fast feed ( mm/ min) :
Z axis: 1~ 2, 000 X axis: 1~ 2, 000
Speed range of fast feed ( mm/ min) : Z axis: 10, 000 X axis: 10, 000
Main motor power ( KW) : 3
Machining precision ( mm) : Circular degree: 0.001 Cylindricity: 0.003/ 100
Surface roughness ( um) ( material H62) : Ra 0.4
Overall dimensions ( L* W* H) ( mm) : 1, 470* 1, 200* 1, 570
Machine weight ( Kg) : 1, 550
