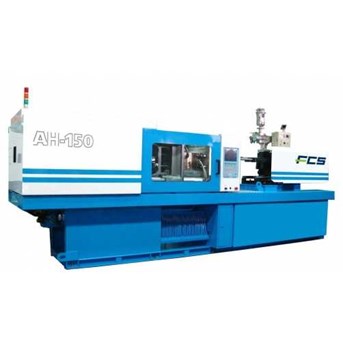

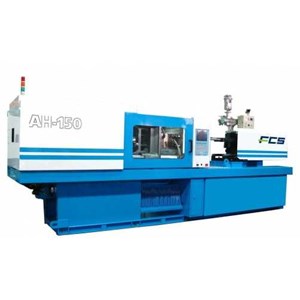

Thin-wall Parts Molding System AH-110 ~ AH-150

Thin-wall Parts Molding System AH-110 ~ AH-150 No matter how the technology and economy have changed, food container industry is always taking a space in the plastic molding area. Due to the demands of cost down and environment friendly, reducing the container thickness and increasing the cavities seem to be more and more important. Since then, FCS develops a production system for thin-wall containers - AH Series, which is the best solution for the food container molding industry. Features: High injection speed and response: - The new single injection cylinder design achieves synchronization which is more excellent than dual design, and helpful to improve injection stability and suitable for high speed injection molding. - Framework design feature is that the hydraulic motor is mounted on the framework and not moves with the reciprocating injection screw. This reduces the inertia and promotes the response ( 70ms) and stability in injection molding. - High speed injection molding reduce injection time and increase the shear heat of plastic to help the integrity which hotly fills in the thin-wall food containers. - With high responding accumulator, the maximum injection speed rate is up to 300 mm/ sec that can achieve the duty of molding thin-wall containers. High repeatability and stability - AH Series adopt Vickers high response close-loop servo valve for maintaining its repeatability and controlling the holding pressure. High rigidity and durability structure - Enhance the rigidity of clamping system, reduce structure deformation and force uniformity to fill the needs of high speed injection machine. - Guarantee the mold parallelism in the molding process. Optimization of toggle mechanism dimension - The optimal toggle mechanism dimension is calculated by Genetic Algorithms method - Smooth motion of mold open and close, and increase speed by 20% . - Reduces the toggle loading and bushing abrasion. MESINDON ( MAINTENANCE SERVICE & PENJUALAN MESIN INDUSTRI) Hubungi 0815 614 1954, 0811 893 101 Jakarta - Indonesia
